Description
Application
- Parking lots
- Airports
- Building facades
- Streetscapes
- Entryways
Installation
- Slipfitter
- Yoke/Flood (Optional)

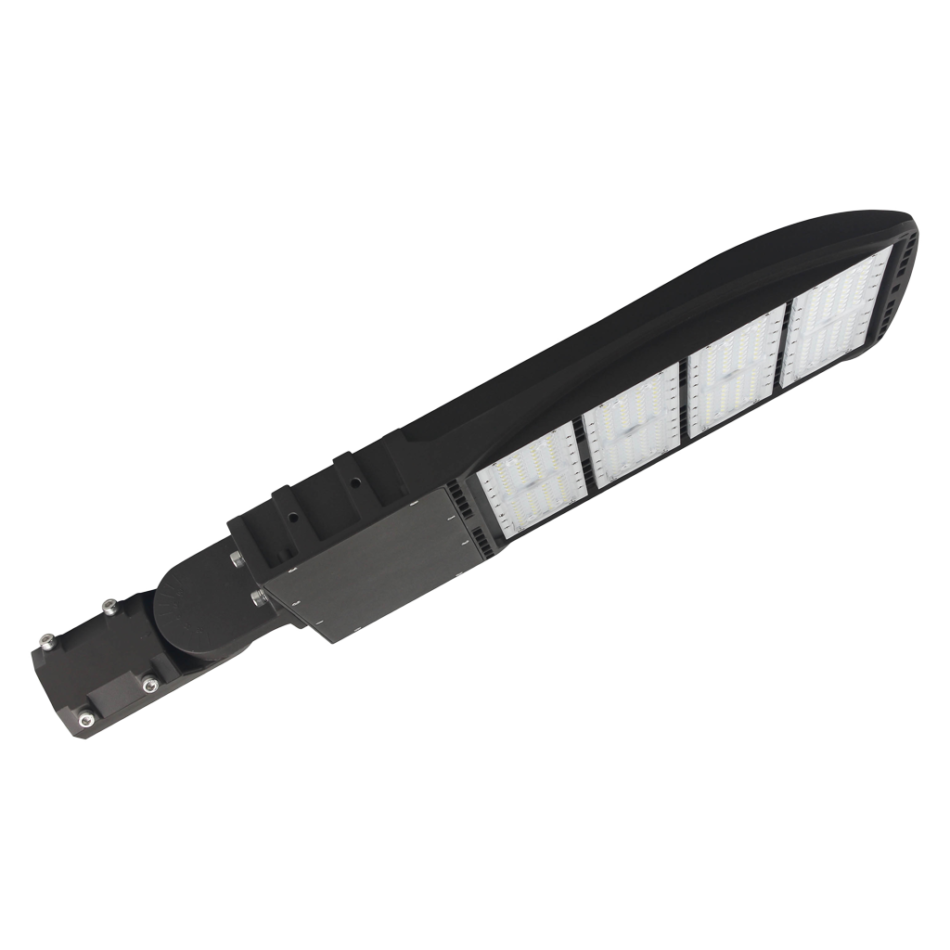

Area Parking Light 240/200/150W 3CCT 130LM/W 120-347V Shoebox Fixture Wattage & CCT Selectable
Features
- Power (wattage) & Color (CCT) selectable
- 130lm/w High Lumen Efficacy
- DLC Premium, cUL listed
- 1-10v dimmable
- 120-347V 50/60Hz
- 12V Auxiliary output
- 50,000 hour life
- Beam (TYPE III) (Type III, IV, V lens interchangeable)
- Aluminum alloy housing with Flip Cover
- Surge protection 6KV line to ground/Line (lighting arrester 10KV available)
- Rated for IP66
- Anti-UV PC lens with >95% light transmission
- 5-year warranty
Additional information
| Dimensions | 23.8 × 14.56 × 6.7 in |
|---|---|
| Weight | 14.33 lbs |
| Wattage | 150W |
| Mounting Type | Slipfitter |
| Distribution Pattern | TYPE III |
| Lumens | 17200 |
| Voltage | 120-277V, 200-480V |
| CCT(K) | 4000K, 5000K |
| Life Hours | 50000 |
| CRI | 70+ |
| IP Rating | 65 |
| Operating Temperature | -40℃ ~ +45℃ |
| Power Factor | 0.90 |
| Warranty | 5-Year |
